pliance^® – Pressure and load distribution on hard or soft surfaces

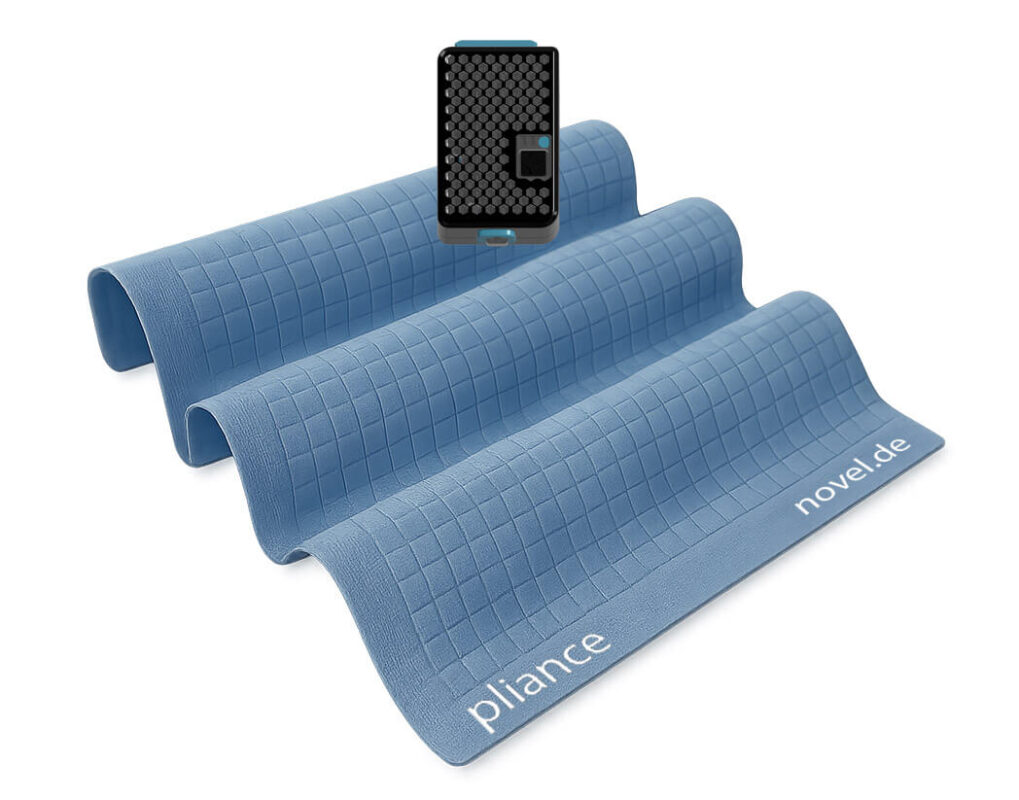

pressure mapping mat - pressure detection by pliance system

pliance systems* offer the state of the art technology for pressure distribution measurement between hard, soft and curved surfaces. The systems consist of a flexible and elastic measuring sensor mat, a multi-channel analyser, a calibration device and a software package for PC.

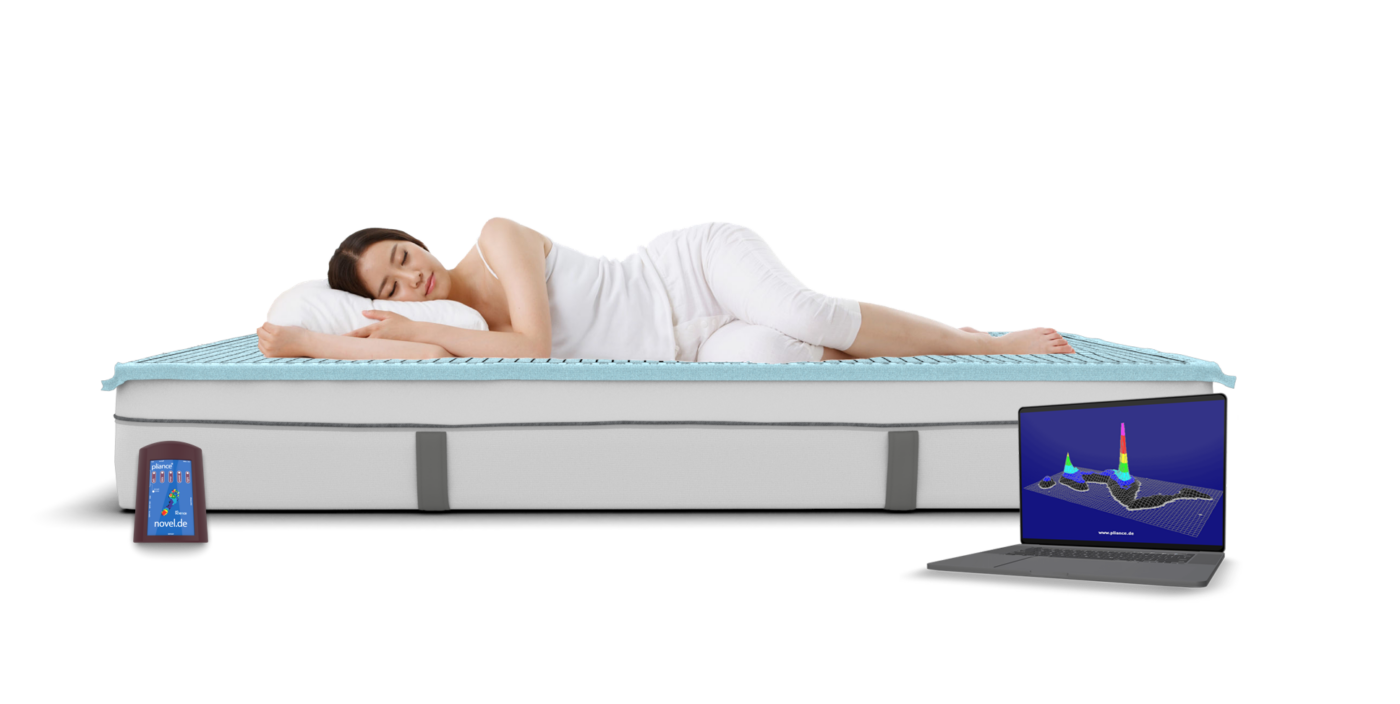

Two kinds of pliance analysers are available: The pliance-xf-16 device scans an array of up to 16*16 sensors, while the pliance-xf-32 device scans larger sensor arrays with up to 32*32 sensors, which is typical for larger seat mats and special high-resolution sensor mats. A master-slave synchronisation of two pliance-xf-32 device allows to operate even more complex configurations, for instance sensor mats to cover bed mattresses.

novel developed an analyser technology that allows not only individual calibration curves for each sensor, but also individual dynamic amplification control and crosstalk suppression, resulting in very accurate and reproducible pressure values. The pliance analyser communicates with the PC via Bluetooth, or alternatively via fibre optic/USB interface. For recordings independently from PC the system can be triggered manually and record data on SD card.

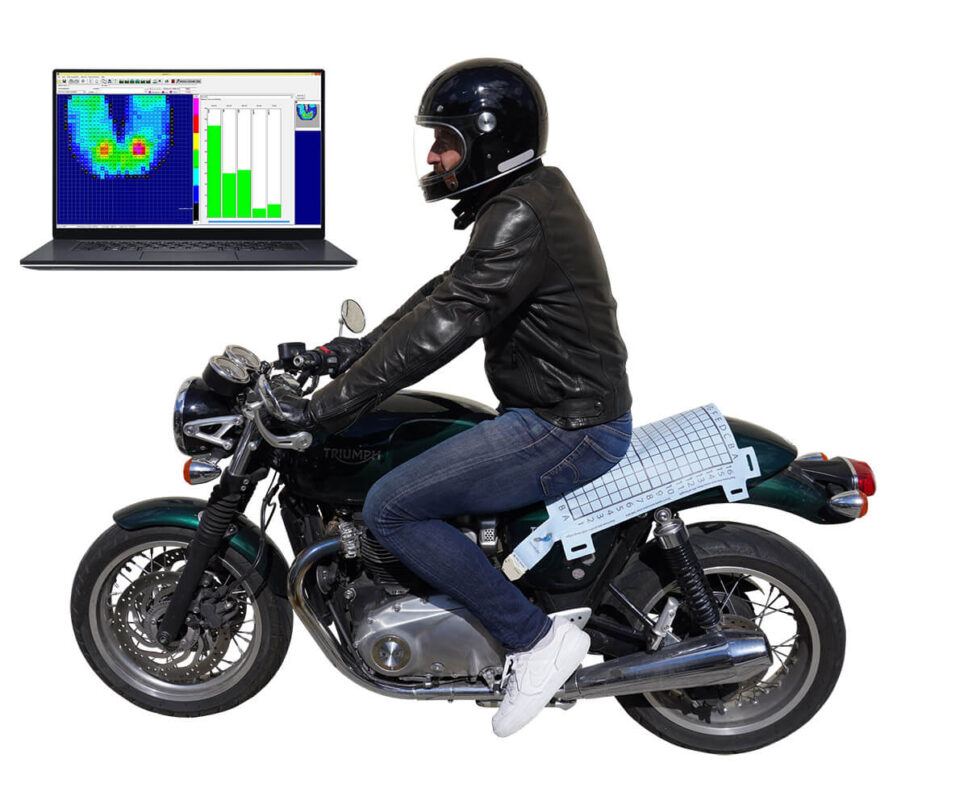

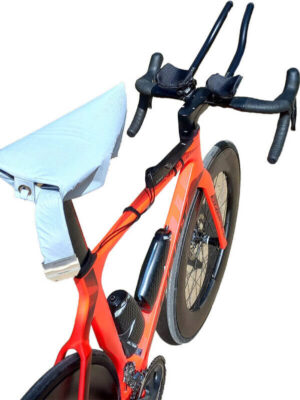

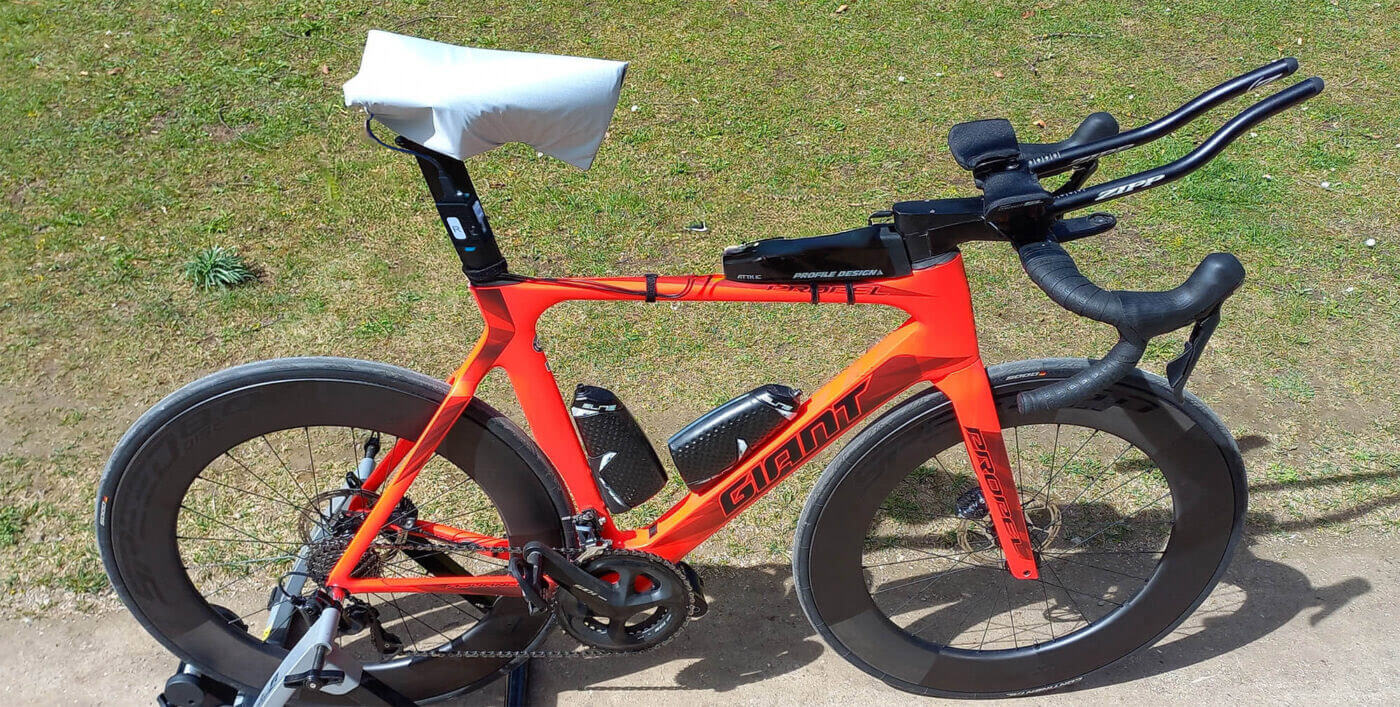

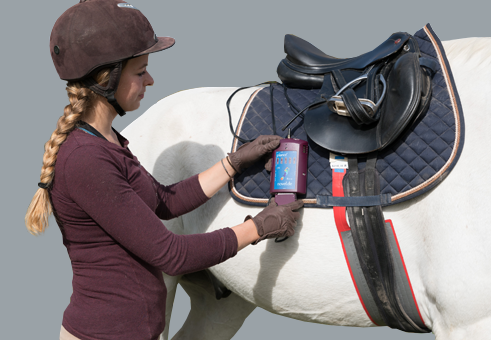

saddle pressure measurement - motorcycle

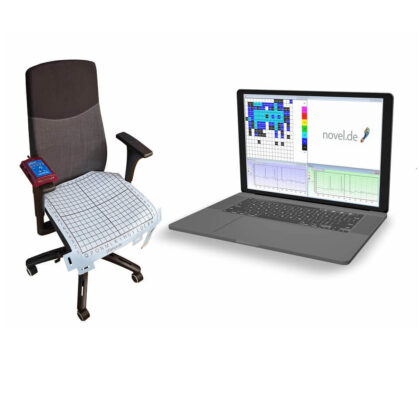

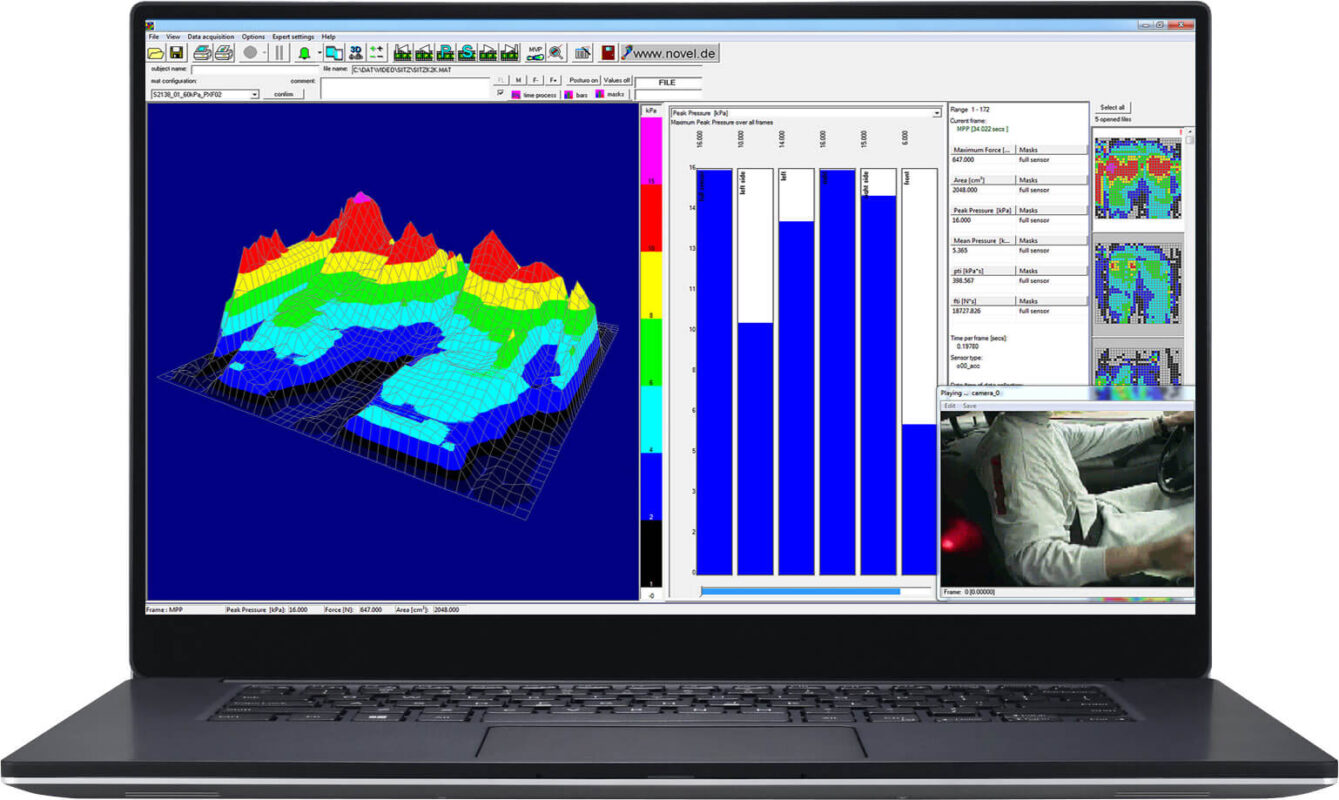

The pliance data acquisition software

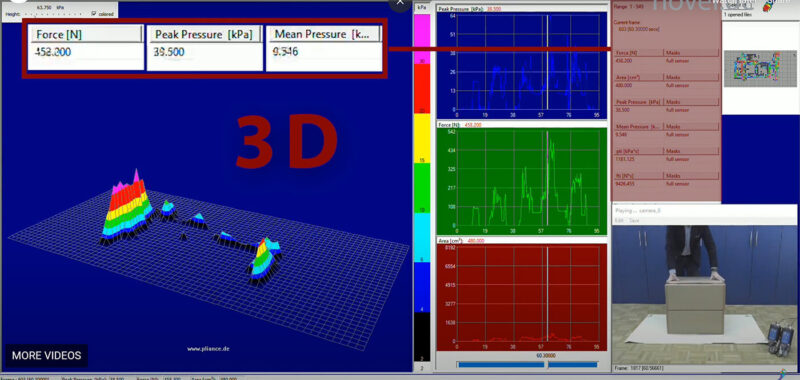

The software operates as a Windows or Mac application and contains many useful methods of data collection and scientific analysis of dynamic pressure distribution. It also allows continuous data storage in online mode and data handling with a configurable SQL database. The expert can design the parameter configuration to specific needs and exchange data with colleagues via HTML protocol. Different levels of pliance measuring software are available.

Body pressure mapping - pressure measurement sensor mat - pliance

pliance/E (expert)

pliance/R (Recorder)

pliance-ftx/E (expert)

pliance-ftx/R (Recorder)

The pliance sensors

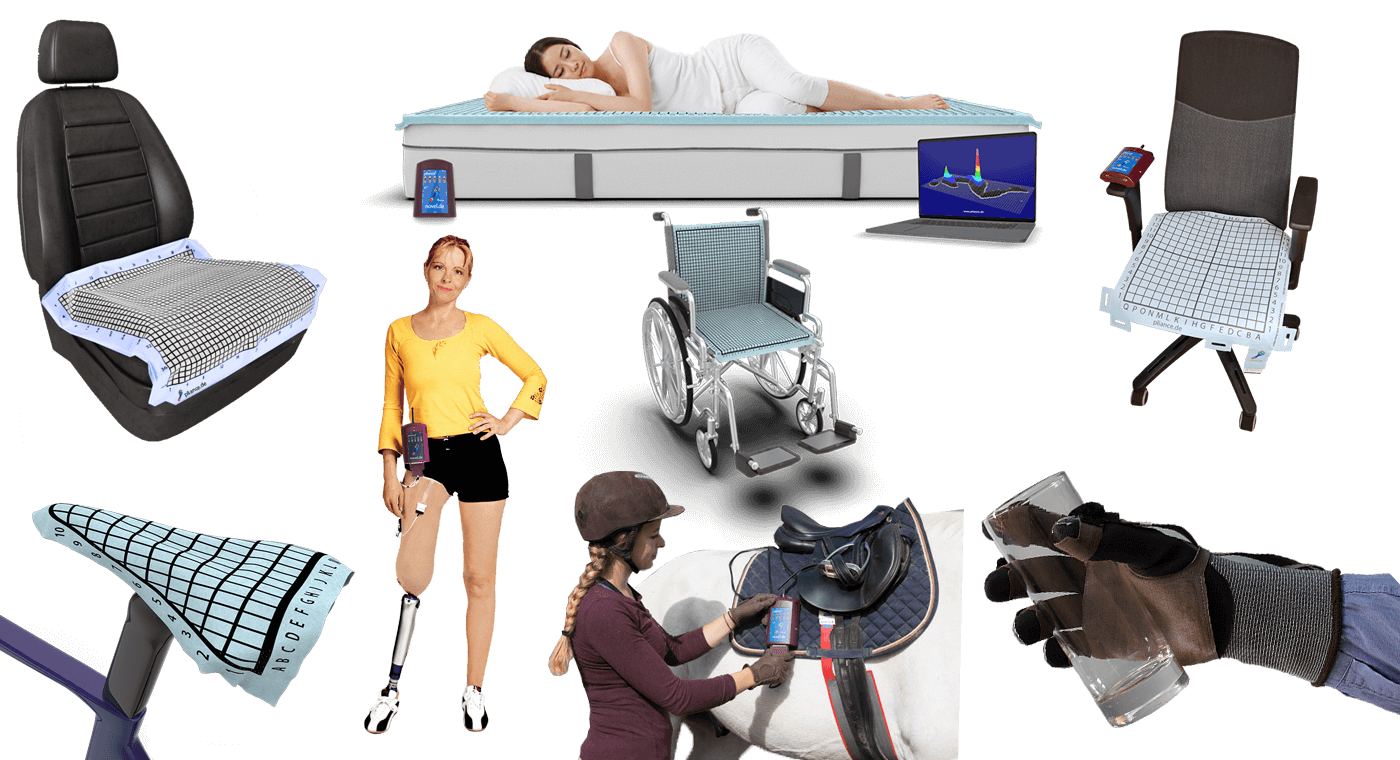

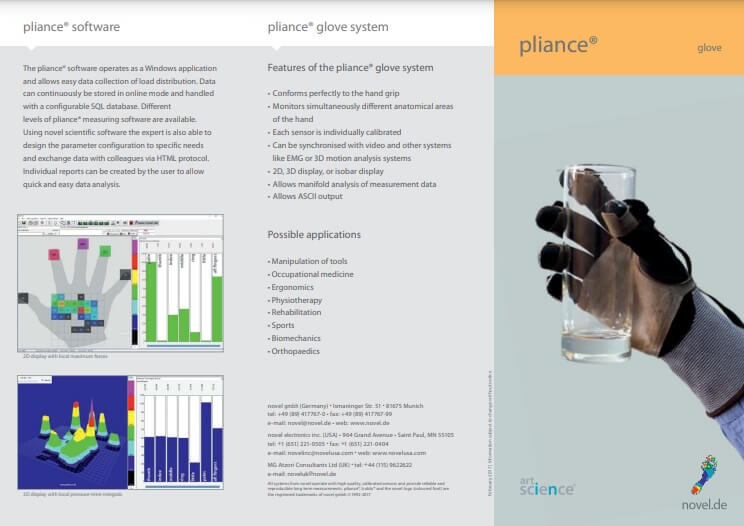

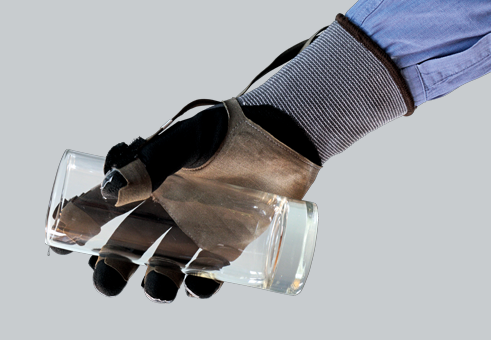

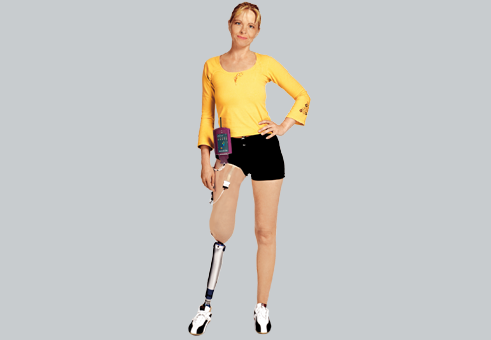

pliance sensorsare available in various sizes, sensor configurations and pressure ranges. That is why the pliance system is used for various applications e.g. in sports, biomechanics, industry, research, and development.

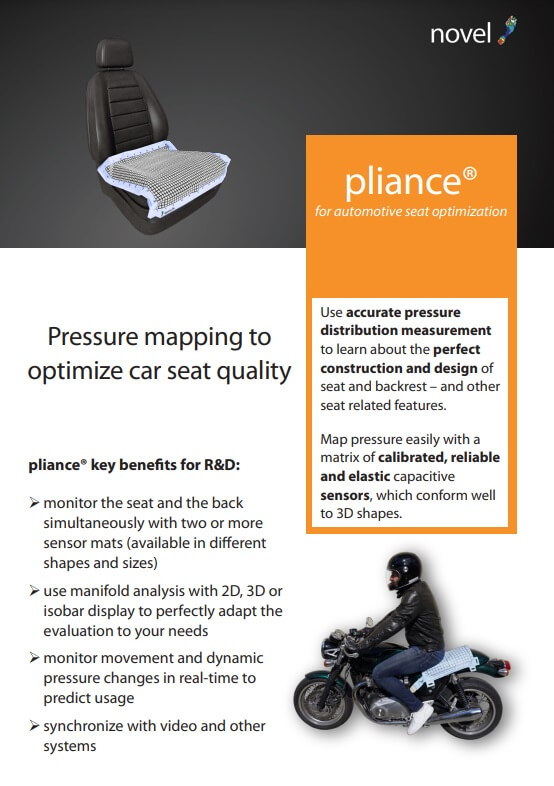

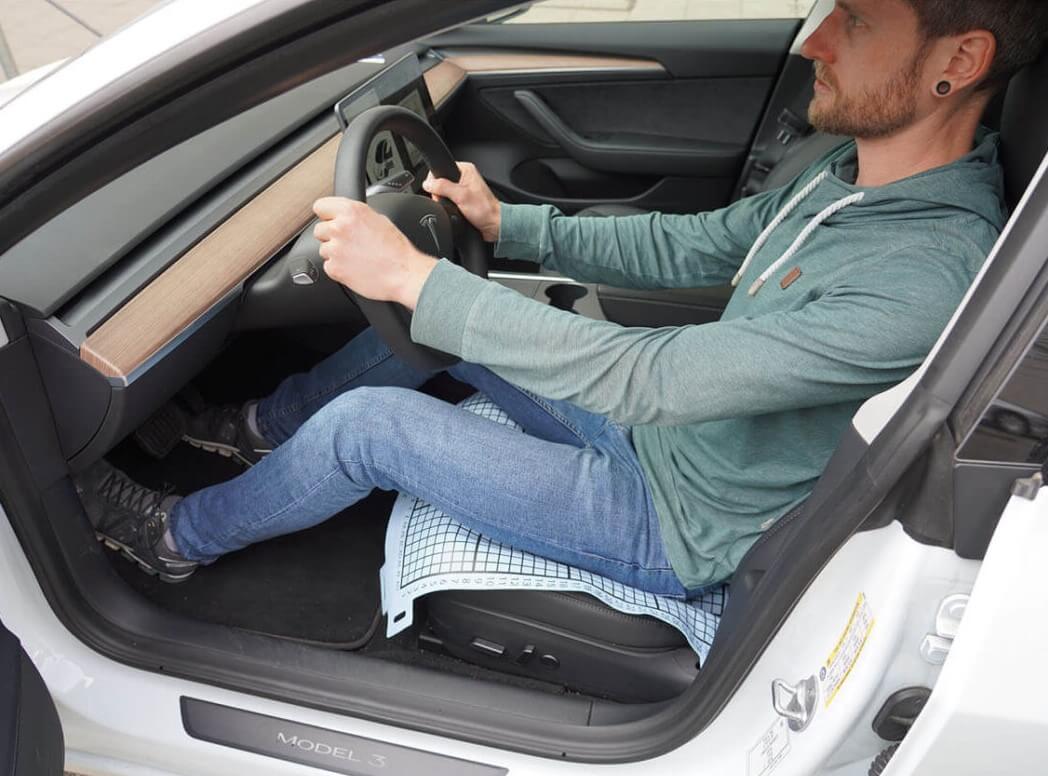

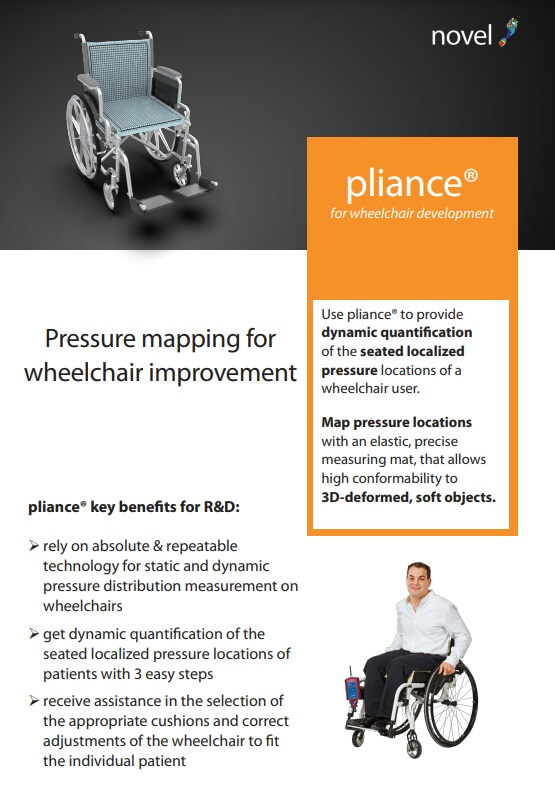

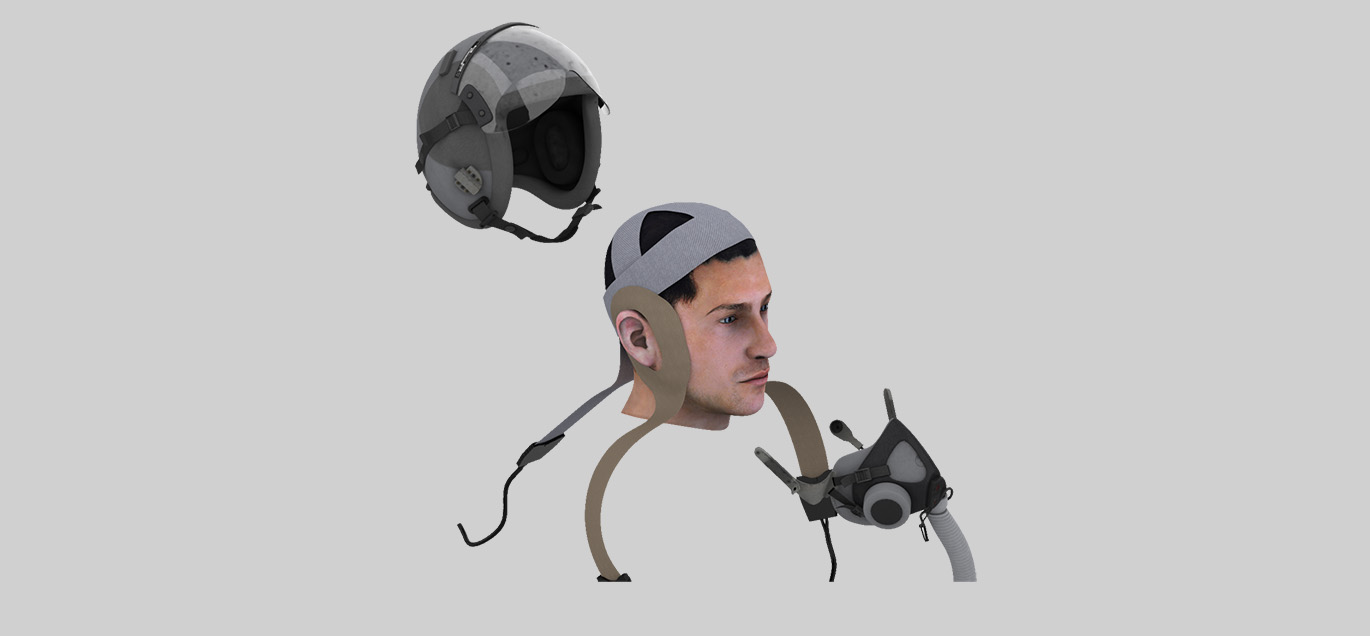

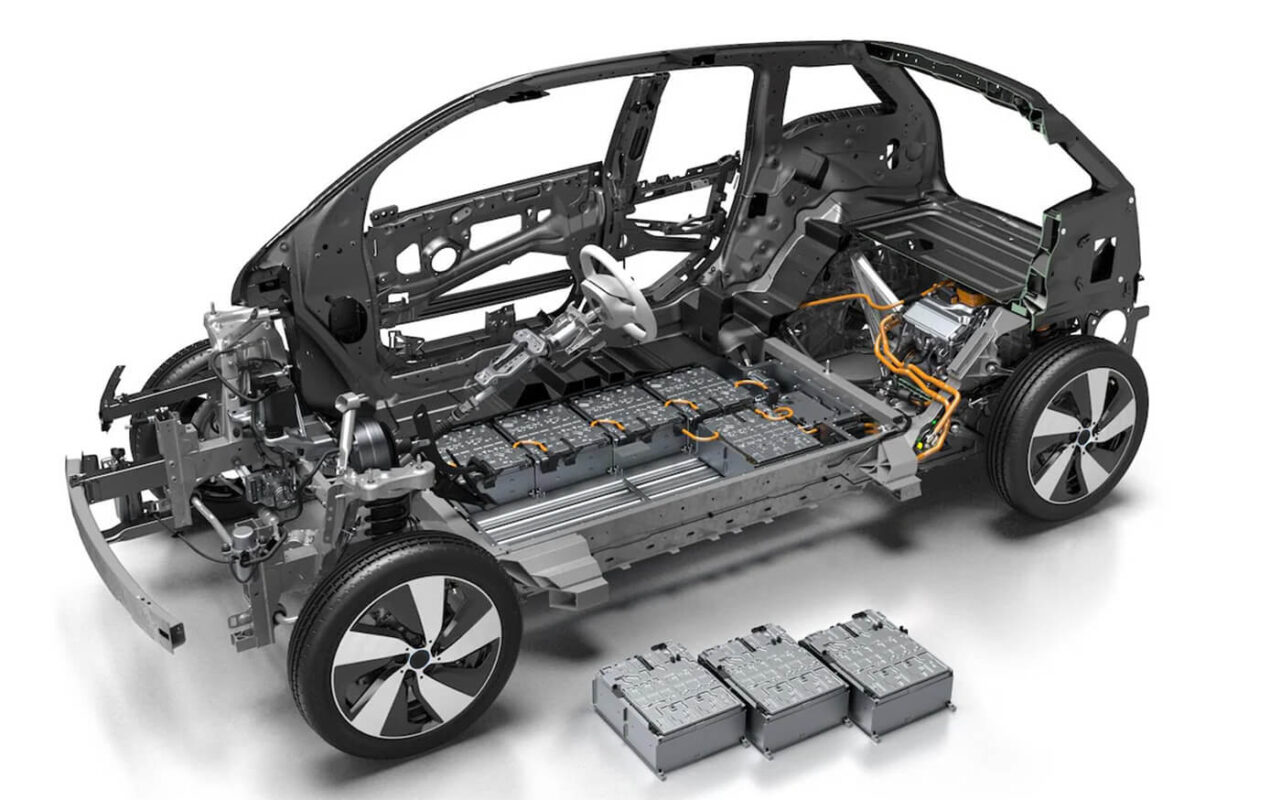

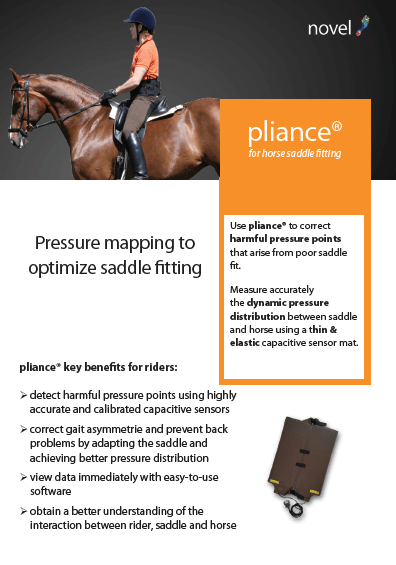

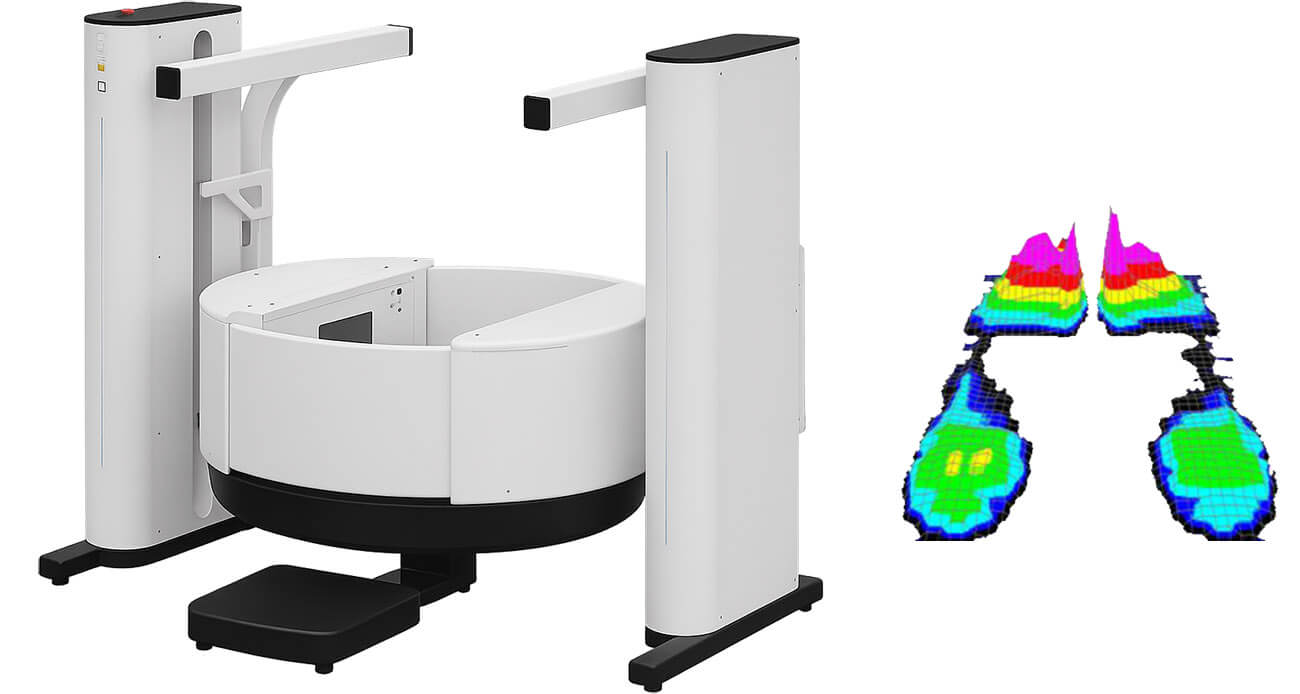

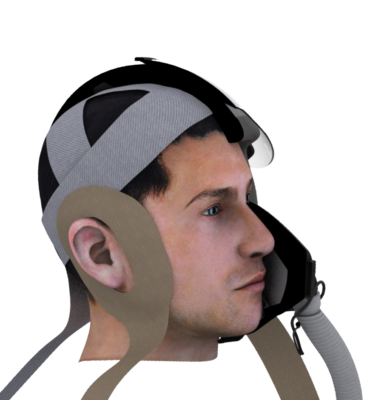

body pressure mapping - Pliance applications - pressure mapping measurement

As in all physical measuring systems the most important part is the sensor technology. pliance works with capacitive transducers in a matrix configuration. The elasticity of the sensor permits perfect conformability to three-dimensional and soft surfaces. The pressure transducing elements contain high-tech elastomers manufactured by novel. Restoring force, range of force, threshold, hysteresis, temperature effect, frequency response, and other characteristics are determined during the manufacturing process. This makes it possible to adapt the sensor characteristic to different measuring needs.

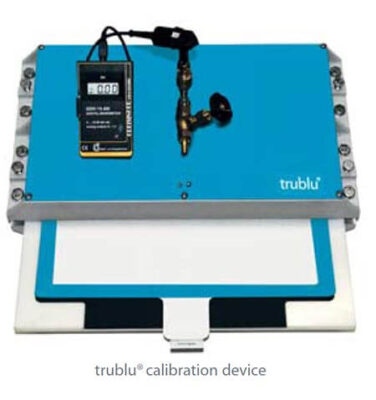

trublu calibration device

With the aid of the trublu calibration device, all pliance sensors are individually and simultaneously calibrated with homogeneous air pressure. Calibration guarantees accurate and reproducible data collection.

The calibration device can be used at any time to verify the quality of the measuring results. It uses homogeneous air pressure on all sensors through increasing steps of pressure. Thus an individual calibration curve for each sensor can be calculated. The software contains many useful methods of data collection and scientific analysis of dynamic pressure. It also allows continuous memory of data.
