emed® Software

We offer 3 different software packages for all emed platforms: Clinics, Expert and Recorder.

diabetic foot ulcer prevention - diagnosis & treatment | novel.de
Clinics Expert Recorder
Automatic measurement and recognition of left and right steps; Automatic measurement and recognition of left and right steps; Automatic measurement and recognition of left and right steps;
Saving to database; Saving to database; Saving to database;
Averaging of selected steps; Averaging of selected steps; Averaging of selected steps;
2D, 3D and Isobar view of pressure distribution picture; 2D, 3D and Isobar view of pressure distribution picture; 2D, 3D and Isobar view of pressure distribution picture;
Detailed display of roll-over process; Detailed display of roll-over process; Detailed display of roll-over process;
Time curves of force, pressure and area Time curves of force, pressure and area Time curves of force, pressure and area
Force-time-integral. Force-time-integral. Force-time-integral.
  Configuration of recording modes, e.g. long static recording; Configuration of recording modes, e.g. long static recording;
  Several tools, for instance isolating loading events from total recording, measuring foot length, loading time picture etc; Several tools, for instance isolating loading events from total recording, measuring foot length, loading time picture etc;

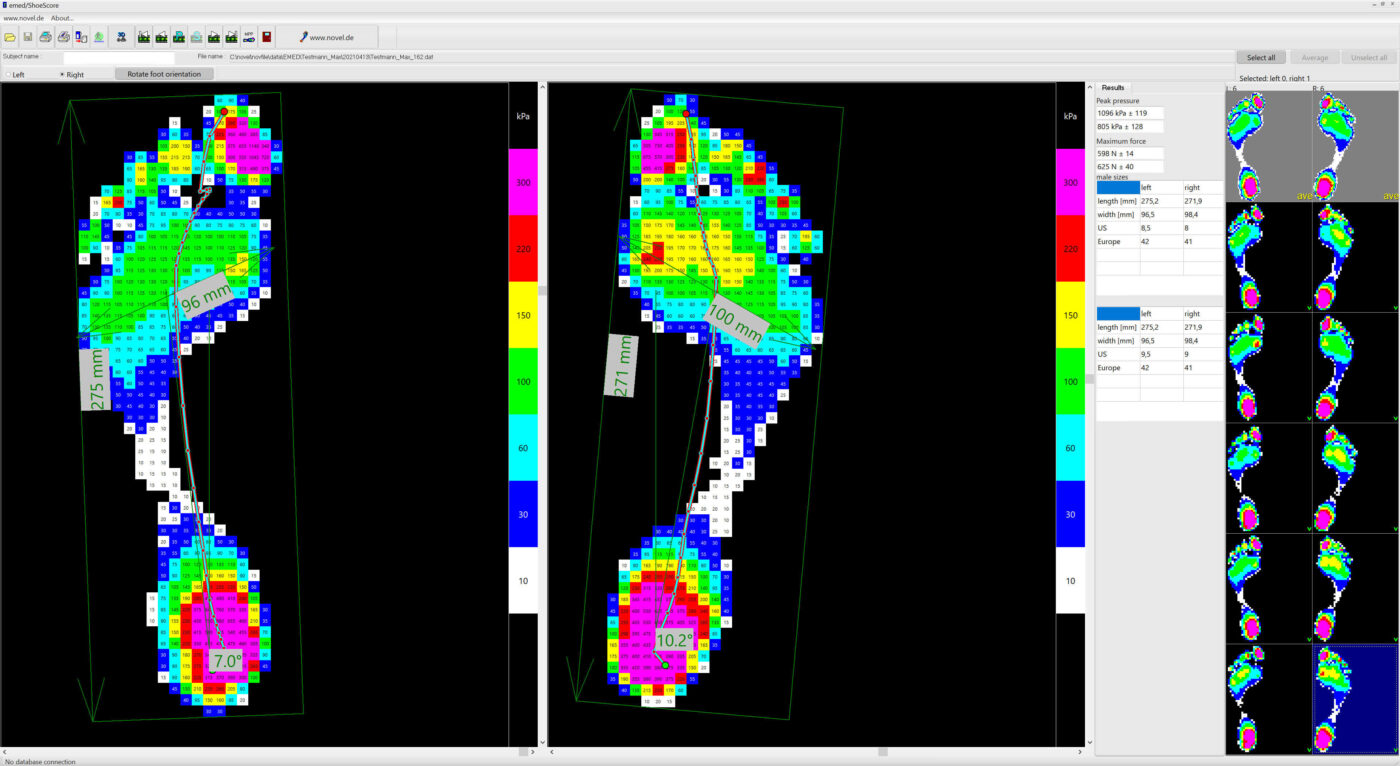

  ShoeScore calculates shoe sizes (EU and USA). ShoeScore calculates shoe sizes (EU and USA);
    Simultaneous video recording and display (cameras not included).

Details

We recommend the packages, depending on your requirements.

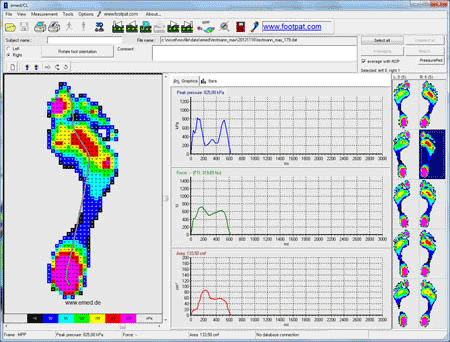

emed/CL Software

Features included:

  • dynamic and static pressure distribution measuring bi-directional
  • audio signal for measurement stand-by
  • automatic storage of measurement data
  • storage of collected data with comments
  • integrated overview display for up to 10 measurements with automatic recognition of left and right footstep
  • display of each frame in rollover process (ROP)
  • maximum pressure picture (MPP)
  • display of sensor value for each sensor
  • vertical force – time curve
  • screen copy
  • displays gaitline (center of pressure)
  • maximum pressure – time curve
  • contact area – time curve
  • 1 : 1 printout of the pressure picture
    – with pressure value for each sensor
    – large footprints may be printed on LS printer
  • displays isobar pictures
  • single picture static measurement

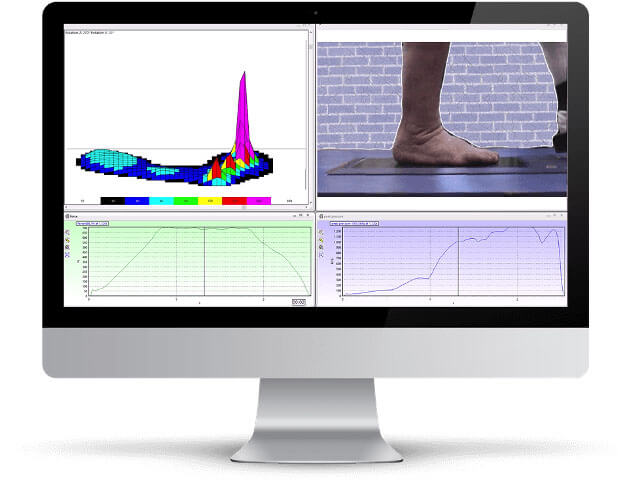

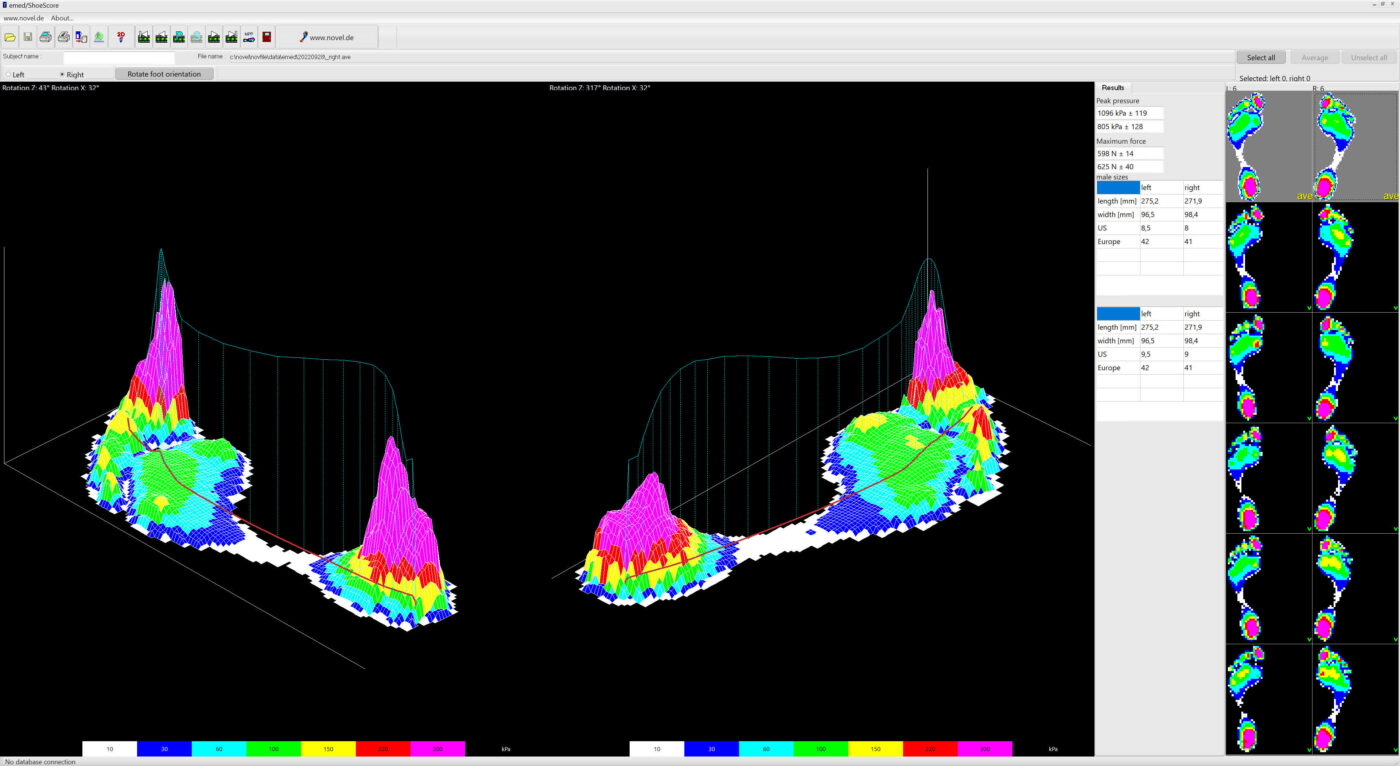

  • dynamic, colour display of the ROP and the MPP in 3D with user defined angle of view
  • calculates the averaged rollover process from single measurements with automatic storage to the database
  • allows direct access to clinical foot reporting system (if installed)
  • extract of a selected areas within one pressure picture (e.g. double contact) as one step or as different steps
  • novel database emed light
    – management of basic patient data
    – creation of multiple databases
    – initiates data acquisition
    – access to all novel – software, if installed

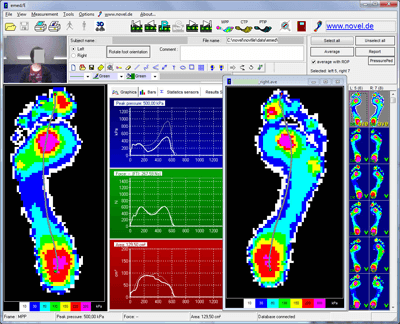

emed/E (Expert) Software

Features included:

  • same features like emed®/CL Clinics, and additionally:
  • many frames static measurement
  • measures foot length and width
  • shows force-time integrals
  • provides toolbar for graphical editing
  • novel database light
    – management of basic patient data
    – creation of multiple databases
    – initiates data acquisition
    – access to all novel – software, if installed

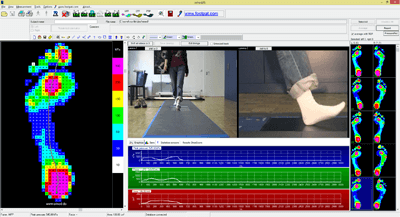

 emed/R (Recorder) Software

Features included:
•    same features like emed®/E (Expert) software, and additionally:
•    captures 2 video cameras synchronously
•    displays and stores pressure and video synchronously as one combined file

•    novel database light
     – management of basic patient data
     – creation of multiple databases
     – initiates data acquisition
     – access to all novel – software, if installed

novel footpat® Software

The novel footpat® software allows to do a pedography of the feet of a person and detects from this the dynamic foot length and width during walking. Based on these results recommendations for the appropriate shoe size will be given automatically.
